Membrane reactors achieve efficiencies by combining in one unit a reactor that generates a product with a semipermeable membrane that extracts it. The result is a more compact design plus greater conversion. Removal of a product increases the residence time for a given volume of reactor and drives equilibrium-limited reactions towards completion. This latter advantage is reviewed excellently by Armor^1,2 while the former has been, largely, ignored. In my opinion, a yet-larger advantage of membrane reactors is that they expand the allowed range of temperatures and pressures for a reaction. Membrane reactors fundamentally change the pressure dependence of conversion in gas phase decomposition reactions so that the reactions are preferentially performed at high pressures rather than low. Higher pressures allow much smaller reactors and more efficient purification. Membrane reactors can be advantageous also for sequential endothermic and exothermic reactions, by using the product extraction to promote heat transfer. Enhanced heat transfer permits plug flow where CSTR designs would have been necessary otherwise. The net result is smaller reactors, lower capital costs, and often fewer side-reactions. These general benefits will be illustrated for methanol reforming to hydrogen.

An example application, methanol reforming:

Consider the methanol reforming reaction which is being pursued as a source of hydrogen to fuel fuel cells, e.g. for mobile electricity generation on boats, for military hospitals, and electric cars.

CH₃OH + H₂O -->3H₂ +CO₂       (1) This reaction can be modeled as occurring in two stages³: a nearly irreversible endothermic cracking reaction in which one mol of liquid methanol is converted into three mols of products CH₃OH -->2H₂ + CO                  (2) followed by the water gas shift reaction, CO + H₂O --> H₂ + CO₂              (3) which is exothermic and equilibrium limited. For mobile applications, both reactions are typically performed in a plug-flow reactor using mixed copper-zinc oxide catalysts. Typically this is followed by a purification step, e.g. a partial oxidation that removes unreacted CO. Without a membrane reactor, the heating and pressure requirements of this process are difficult, requiring a large reactor and significant heat transfer area.
   If possible, reaction 2 would be performed at high pressure and temperature to speed the reaction and for improved catalyst use³. Because this reaction is very endothermic, the entrance temperature must be high, and heat must be provided along the reactor length. By contrast, low temperature and pressure are needed to drive reaction 3. Since this reaction is exothermic, heat must be removed either between this stage and the last, or along this part of the reactor. Figure 1 shows a typical approach involving an internal heater for reaction 2 and three external heat exchangers that preheat the feed and provide interstage cooling for reaction 3. The low pressures needed to drive reaction 3 caused both reactions to be performed at low pressures, below 100 psi. The result is a larger reactor than would be needed if high pressure cracking were used. The large size increases equipment costs and exacerbates an already difficult heat transfer problem.

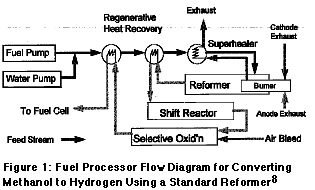

   Figure 1 also illustrates the difficulty of hydrogen purification at these pressures. The set-up shown uses partial combustion to reduce the CO content from 1-2% exiting the water-gas shift reactor to about 20 ppm. Hydrogen purity in this range is needed in order to use PEM fuel cells, and higher purity hydrogen would be better. Amphlett et al have shown that, with a pure hydrogen

source, the PEM fuel cell power density would be three times greater than with the 20 ppm of CO that this process produces⁴. Thus the fuel cell in Fig. 1 must be three times bigger than if pure hydrogen were available. Combustion catalysts also consume hydrogen which reduces the overall efficiency; they are used in Figure 1 because they are the only low pressure purification process available.

Fundamental Improvement in Pressure Dependence:

Performing the same reaction in a membrane reactor give much purer output hydrogen and produces a fundamental improvement in the way that extent of reaction is affected by pressure. Instead of benefiting from low pressures, this reaction, when performed in a membrane reactor benefit from being performed at the highest pressures available, as will be shown below.
The equilibrium constant for the overall methanol reforming reaction (1) is expressed in terms of partial pressure and mol fraction respectively as

K = [P_H2]³[P_CO2] / [P_H2O][P_CH3OH] (4a) = P_Tot²[y_H2]³[y_CO2] / [y_H2O][y_CH3OH] (4b) where K is the equilibrium constant, [P_H2] is the partial pressure of H₂, P_Totis the total pressure, and [y_H2] is hydrogen component mol-fraction. Assuming an equal, bimolar feed and equilibrium conversion in a normal (non-membrane) reactor, we can define the extent of the reaction as the mole conversion to CO₂. Starting with one mole each of methanol and water, we will have one mol of CO₂ and three mols of hydrogen if the reaction were to go to completion. For less than a complete reaction the number of mols of CO₂ in the output equals (extent), the mols of hydrogen equals (3 extent), the mols of water and CH₃OH will be (1-extent) each, and the total number of moles will be (2+2 extent). For equilibrium conversion, Eqn. 4b becomes:

= K/P_Tot². (5)

Clearly, the higher the total pressure, the lower the extent of reaction at equilibrium.
   In a membrane reactor, the hydrogen partial pressure becomes less of a function of the extent of reaction, and more of a function of the backpressure of the hydrogen outlet. (For mobile use, ß will about 1 atmosphere). For the ideal membrane reactor, where transport resistance is minimal, the hydrogen partial pressure equals this hydrogen backpressure. We can define a constant ß as this hydrogen back-pressure and derive extent equations for the ideal membrane reactor. Substituting ß for the hydrogen partial pressure, equation 4 becomes:
         K = ß³ [y_CO2] / [y_H2O][y_CH3OH]P_Tot       (6)
   As before, we will consider the extent of reaction for an feed of one mol each of methanol and water, and will define the extent of the reaction as equaling the mol conversion to CO₂. For this case, the number of moles of hydrogen in the reactor is ß(2-extent)/(P_Tot -ß), and the total number of moles is {2-extent +ß(2-extent)/(P_Tot -ß)}. At equilibrium, Eqn. 6 becomes:

= P_TotK/ß³. (7)

Equation 7 provides two insights into the advantages of membrane reactors: (1) lowering the product pressure, ß strongly increases the reactor conversion, and (2) for the membrane reactor the higher the total pressure, the greater the conversion. This pressure dependence is fundamentally different from that observed in the normal reactor, Eqn. 5, and allows tremendous design improvements. High total pressure not only drives conversion, but also decreases the volumetric flow rate for gas-phase reactions (volumetric flow rate for gases decreases inversely with overall pressure at a given molar flow rate). A decreased volumetric flow rate increases the residence time, or allows a much smaller reactor for a given residence time. To get these advantages with a membrane reactor, one needs a good catalyst and sufficient membrane to rough equality between the back-pressure, ß and the product partial pressure. An appropriate reactor design also must be chosen to allow sufficient heat transfer and energy management.

Membrane Reactor Designs:

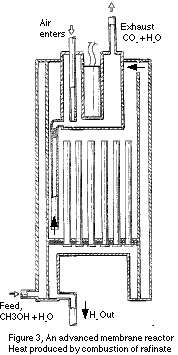

   Two membrane reactors for use with methanol reforming are shown in Figures 2 and 3; the one in Figure 2 has already been built and tested, the one in Figure 3 was proposed but never built. In both designs, a methanol water mixture enters the outer annulus, flows up while being heated, and flows downward inside the reactor core. The reactor in Figure 2 used 100 cc of catalyst. Heat was provided by electrical heating tape augmented by heat-exchange between the core and the annulus. Product hydrogen was purified and removed through seven 5.5? long REB Research membrane tubes. The reactor ran continuousely for one month on a feed on methanol-water mixture with a hydrogen output of 800 cc/min at 150 psi and 265 °C. The relatively high

operating pressure meant that the reactor could be much smaller than an equivalent sequential reactor-separator. Further, the output purity from the membranes was 100% so that no subsequent hydrogen purification was needed. The weight and volume advantages could be significant for vehicular use, providing more passenger space, a quicker start-up, and better acceleration.
   There is a downside to this design and to membrane reactors in general. Driving hydrogen (or any product) through a membrane requires a partial-pressure driving force and a partial pressure of gas in the reactor vent at least as high as that of the pure collected gas. In the ideal case above, ß(2-extent)/(P_Tot -ß) moles of hydrogen had to be vented with the waste gas for every two mols of feed. When the actual unit was tested at Tufts University, 80% of the theoretical, stoichiometric hydrogen was recovered, and 20% was lost. This recovery is higher than with normal sequential reformer-membrane separators partially because of the inherent advantages of membrane reactors, and partially because the membrane was good enough to keep a low hydrogen partial pressure within the reactor. Still, even with a perfect catalyst and membrane at least 5% of the potential hydrogen would be lost.
   Another deficiency of the reactor design in Figure 2 is that it was heated electrically. For commercial use, we will not be able to afford electric heating. Further, we will want to be more fuel efficient and cleaner. One improvement in this direction is to combust the waste gas, including the waste hydrogen, in a separate reactor to provide heat to run the reformer. A membrane reactor that does this is shown in schematic in Figure 3, patent pending. It is really just the design in Figure 2 with an attached catalytic combustor and a flow restrictor to prevent back-burning. Methanol plus water enters at the bottom of the outer annulus and is vaporized by heat recovered from cooling the product hydrogen and the shift reaction. The vapor goes from the annulus to the upper section of the reformer through the portal shown at the upper right. It is further heated in the reformer by raffinate gas combustion. The unit shows an electrical heater as well, but this would be used only for start-up.

   As with the design in Figure 2, the first few inches inside the reactor in Figure 3 is a decomposition zone, where methanol is converted to CO and H2 via reaction 2. This is followed by the membrane-reactor zone where the water-gas shift reaction takes place. As before, removing hydrogen helps drive the reaction at high pressure by keeping the hydrogen partial pressure below that of carbon monoxide and water. The result is a smaller lighter unit than would be possible otherwise. Burning the waste gas improves the overall efficiency while removing any remnant CO. With the appropriate membranes, discussed below, this unit can easily provide purer hydrogen than is available with partial oxidation.

Other Reactions:

Several researcher have demonstrated size and operation advantages of membrane reactors for a variety of reactions beyond the example case of methanol reforming. A group at headed by Barry Pruden at the University of Calgary has gotten good results in a fluidized bed steam-methane reformer using REB membranes at 600 -700°C⁵. Dr. Pruden thinks the very high purity hydrogen produced by this membrane reformer may be cheaper than low purity hydrogen produced by current sequential reformer - PSA units; he is constructing a pilot plant demonstration. Also, a group headed by T. Tsotsis at USC has demonstrated efficient steam reforming of ethane to ethylene at 700 °C instead of the typical 850 °C⁶. More daringly, Aspen Systems, co. of Marlborough, Mass., is currently testing a membrane reactor to convert diesel fuel and water to hydrogen at about 500°C. In all these cases, the main benefit from the membrane is not that it drives the reaction, but that it permits the use of a smaller reactor and separator, and that it allows operation at a greater residence time, at lower temperatures and higher pressures. The benefit is decreased reactor cost (cheaper materials, smaller vessel and less catalyst), fewer side reactions and improved heat transfer. Further capital savings may accrue from less expensive piping, fittings and siting. None of these studies are beyond the pilot plant stage though.

Membrane Choices:

   The REB Research membranes used in most of the studies mentioned are made by palladium coating high permeability alloy tubes. The manufacture and principals are described elsewhere⁷ and the performance is shown in figure 4. The general advantage of membrane reactors is independent of the use of our membranes, though and Tsotsis?s application was performed
Figure 4.
with a single porous ceramic tube⁶. This is not to say that any membrane is appropriate for any reaction. Palladium silver membranes are an established standard, with a great deal of experimental evidence to show that they work. Further, fabrication technology for palladium silver is very well developed so that units of 30,000 cm² are available. Our palladium-coated composite membranes are less developed and we have made modules with only as much as 2000 cm² of surface. Still these units provide about 3 times more flux per unit area than palladium silver at 400 °C, and show approximately three times the flux per dollar. The flux advantage increases at lower temperatures and in the presence of CO so that for many applications, they allow a significantly lower ß, or optionally the use of significantly less surface area. Ceramic membranes (coated and uncoated) show much higher flux than non-porous membranes when operated at their ideal temperatures and without fouling ingredients. The technology for sealing many ceramic membranes into a module for high temperature operation is currently less developed than for the non-porous metallic membranes.
   Temperature and resistance to fouling are as critical as flux when choosing a membrane. Palladium-coated metal membranes, and uncoated ceramics have operated at temperatures between 100°C and 800 °C, although a single substrate choice will not operate well at all these temperatures. By contrast, palladium-silver and palladium-silver coated ceramics work well in the narrower range between about 300°C and 425°C. Glass-coated ceramic membranes work best between 600 and 700°C. Carbon-coated ceramics, like those demonstrated by Rao and Sircar⁹ appear to work best at room temperature and below.
   Concerning fouling, palladium-silver does not foul with water but fouls easily with even ppb levels of H₂S. Ceramics, by contrast, are not affected by H₂S , but deteriorate in moist hot gas. Our Pd-coated metal membranes are inbetween: they tolerate water below about 700°C, and up to 1 ppm of H₂S. Two newer membrane materials, palladium-copper and palladium-ruthenium, are reported to be exceptionally resistant to water and sulfur, but the flux is lower than palladium silver?s.
   Several promising membranes of palladium or palladium-silver on porous ceramic or steel² have been demonstrated. Flux and operating pressure are as high as with palladium-coated refractory metals. Early work produced small membranes of poor durability², but this is improving; the largest palladium-coated ceramic membranes now boast nearly 300 cm² in surface area and a selectivity intermediate between ceramics and dense metals.

Acknowledgement: My profound thanks go to Dr. Ronald Mann of the Royal Military Academy of Canada for helpful comments on this manuscript.

References:
1. J.N. Armor, ?Catalysis with Permselective Inorganic Membranes? J. Appl. Catalysis 49 (1989)1-25.

2. J.N. Armor, ?Membrane Catalysis: Where is it now, what needs to be done?? Catalysis Today 25 (1995) 199-207.

3. J.C.Amphlett, K.A.M.Creber, J.M.Davis, R.F.Mann,B.A.Peppley, and D.M.Stokes, ?Hydrogen Production by Steam Reforming of Methanol for Polymer Electrolyte Fuel Cells?, Int. J. Hydrogen Energy, 19 (1994) 131-137.

4. J.C.Amphlett, R.F.Mann, and B.A.Peppley, ?On board Hydrogen Purification for Steam Reformation/PEM Fuel Cell Vehicle Power Plants,? Int. J. Hydrogen Energy, 21 (1996) 673-678.

5. S.Roy, M.T.Islam, B.B.Pruden, and R.E.Buxbaum, ?Palladium Coated, high Flux Tubular Membranes for Hydrogen Separation at high Temperatures and Differential Pressures? 1997 SAE Fuels and Lubricants Meeting, Edmonton.

6. T.T.Tsotsis, A.M. Champagnie, S.P.Vasileiadis, Z.D. Ziaka, and R.G.Minet, ?The Enhancement of Reaction Yield through The Use of High Temperature Membrane Reactors? Sep. Sci. and Tech. 28 (1993) 397-422.

7. R.E.Buxbaum and A.B.Kinney, ?Hydrogen Transport through Tubular Membranes of Palladium-Coated Tantalum and Niobium?, I&EC Research 35(1996)530-537. More recent information available at http://www.rebresearch.com/products.htm.

8. J.C. Amphlett, R.F. Mann, and B.A. Peppley, ?Predicted Emissions From a Methanol-Fueled ?Electrochemical Automobile Engine Based on A PEM Fuel Cell? , Paper 952374, presented at the 1995 SAE International Fuels and Lubricants Meeting, Toronto Ont., October 1995.

9. M.B.Rao and S. Sircar, ?Nanoporous Carbon Membranes for Separation of Gas Mixtures by Selective Surface Flow? J. Membrane Sci. 85 (1993) 253-264.

THIS PAPER WAS PRESENTED AT THE 15TH BCC MEMBRANE PLANNING CONFERENCE, NEWTON MASS., OCT. 27-29, 1997, AND AT THE CANADIAN AICHE MEMBRANE SEPARATIONS MEETING, CALGARY ALBERTA, AUGUST, 1997.
